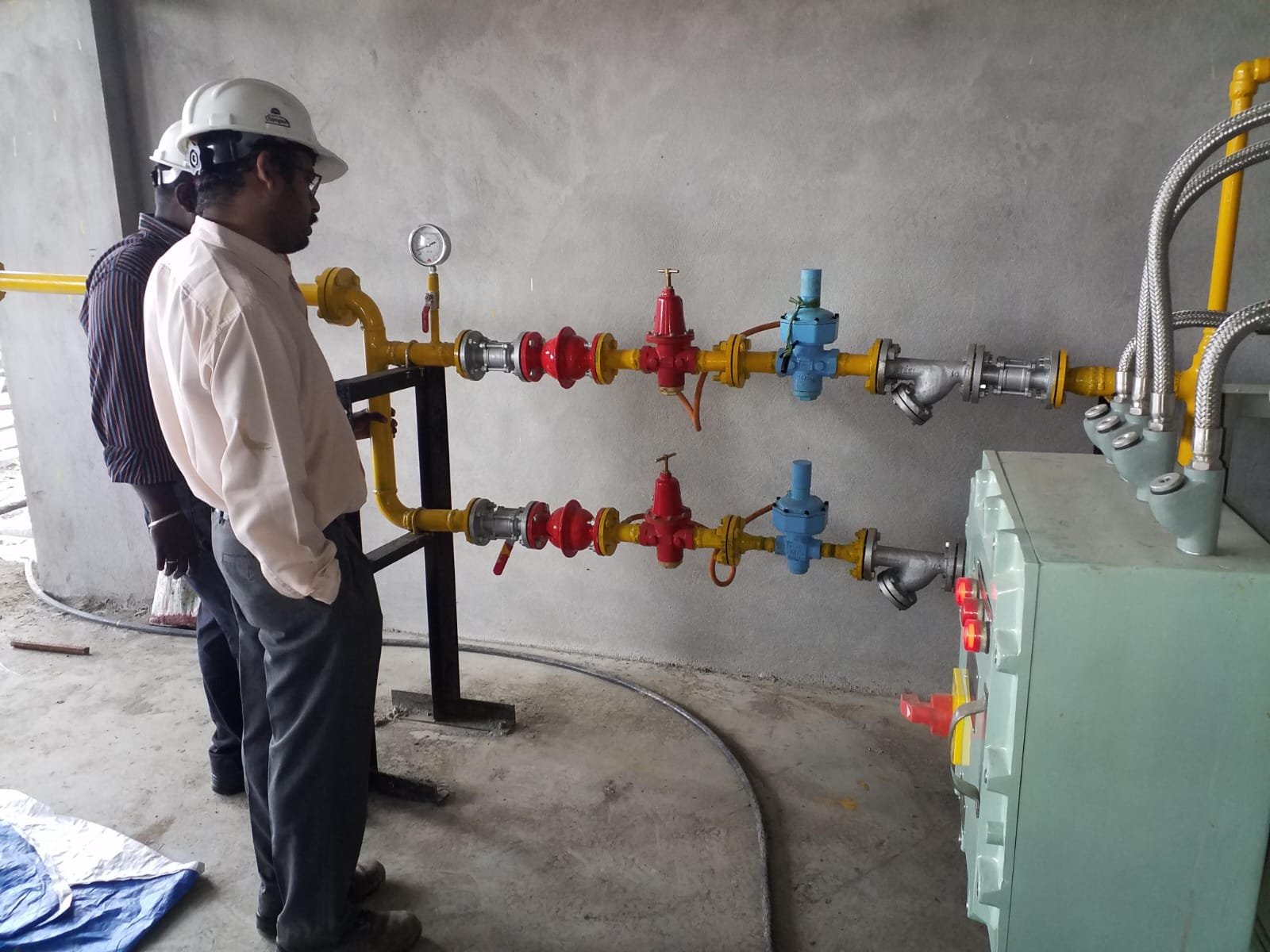

A Liquid Off-Take (LOT) LPG Manifold System

A Liquid Off-Take (LOT) LPG Manifold System is designed to supply liquefied petroleum gas (LPG) in its liquid state from multiple cylinders connected in parallel. This system is typically used in applications that require a high volume of gas flow and where the direct use of liquid LPG is necessary, such as in large industrial processes, high-capacity commercial kitchens, and certain heating applications. Components and Specifications

LPG Cylinders:

• Multiple LPG cylinders (typically larger capacities like 47.5 kg) connected in parallel.
• Cylinders equipped with liquid off-take valves to draw LPG in liquid form.

Manifold:

• A series of pipes and valves designed to combine the output from multiple cylinders into a single supply line
• Equipped with non-return valves to prevent backflow and ensure the safe operation of the system.
• Typically made from high-strength materials to withstand the pressure of liquid LPG. Liquid Withdrawal Valves:
• Specialized valves on the cylinders designed for liquid LPG withdrawal.
• Ensure safe and efficient extraction of liquid LPG from the cylinder. Regulator:
• A high-pressure regulator to control the pressure of the LPG being delivered to the appliances or processes.
• Often includes a pressure gauge for monitoring and adjustment.

Piping System:

• High-pressure, corrosion-resistant piping to transport liquid LPG from the manifold to the point of use.
• Includes safety features such as pressure relief valves and shut-off valves. Appliances/Equipment:
• Devices that use liquid LPG directly, such as industrial burners, high-capacity boilers, and certain types of ovens and heaters.

Features

• High Volume Supply: Capable of supplying large volumes of LPG in liquid form, meeting the demands of high-consumption applications.
• Safety: Equipped with multiple safety features including non-return valves, pressure relief valves, and shut-off valves to ensure safe operation.
• Efficiency: Provides a consistent and high-pressure supply of LPG, enhancing the performance and efficiency of connected appliances.
• Durability: Made from high-quality materials designed to withstand the pressure and corrosive nature of liquid LPG.

Usage

• Industrial Processes: Suitable for high-demand industrial applications such as metal fabrication, chemical processing, and large-scale manufacturing.
• Commercial Kitchens: Used in large commercial kitchens and food processing units that require high-capacity gas supply for continuous operations.
• Heating Systems: Ideal for large heating systems in commercial or industrial buildings that need a reliable and efficient source of liquid LPG.
• Energy Plants: Used in small to medium-sized energy plants for power generation and other energy-intensive processes.
